Large Diesel Engine Block Parts Washer
The StingRay 84170 Orbital Parts Washer is specifically designed to meet the rigorous cleanliness standards for both new and remanufactured diesel and locomotive engine blocks. What sets this washer apart is our exclusive Orbital Manifold Technology, which delivers the same powerful cleaning performance customers have trusted for years in our vertical washers, now applied in a horizontal format. The stationary platform makes loading and unloading hassle-free, with no need for special tools or carriages.
Plus, the Orbital Washer can be customized to fit any block size and offers advanced options like oil gallery flushing and a robotic vacuum system. Only available from StingRay Manufacturing, this washer is the ideal solution for handling the largest engine blocks with ease and precision.
USA Specifications:

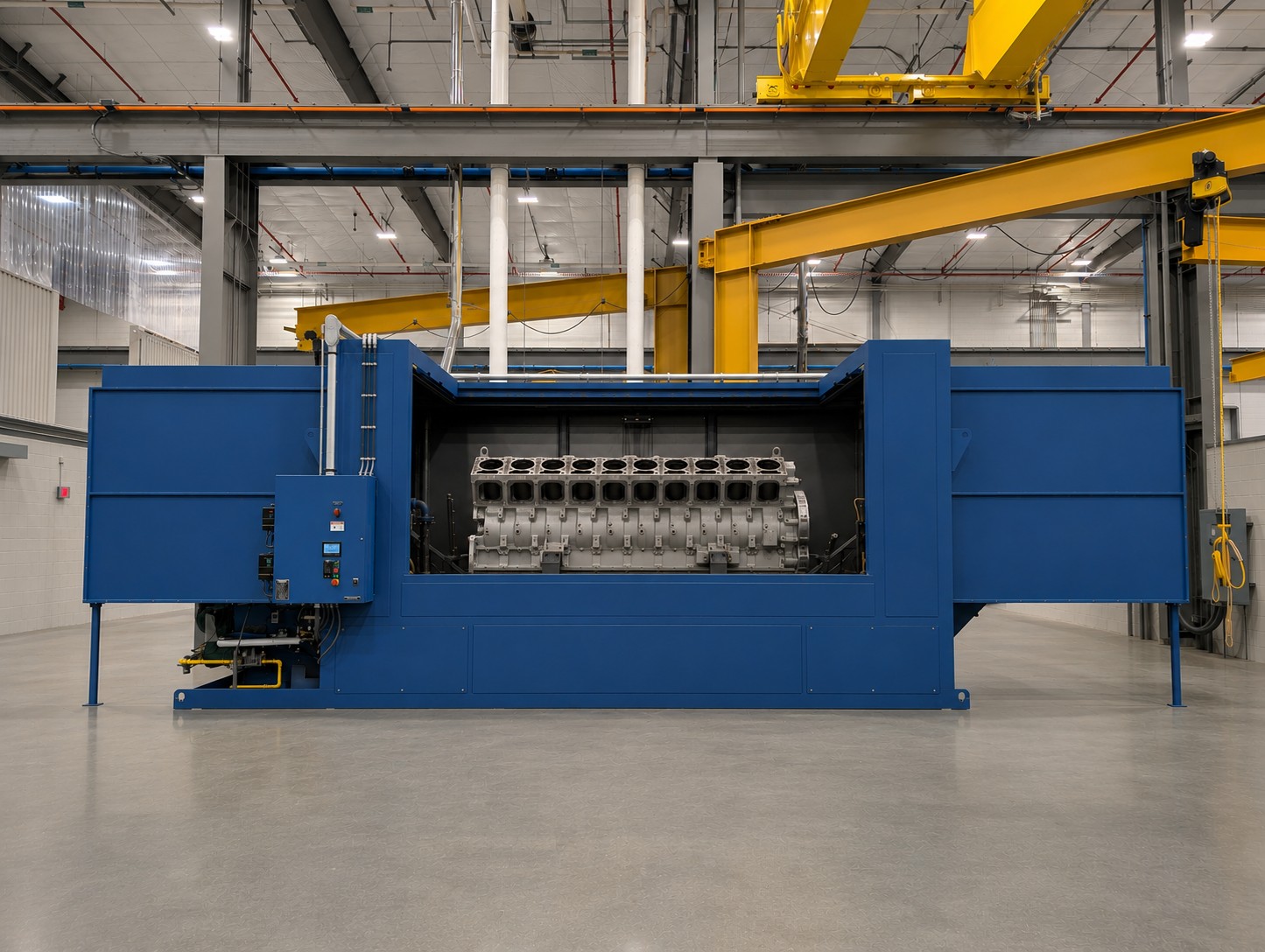

SR 84170 Orbital Parts Washer
Metric Specifications:
SR 84170 Orbital Parts Washer
Standard Features & General Construction
- Green Technology: Closed Loop Zero Discharge
- Clamshell Parts Washer Door Design for Maximum Turntable Access
- Electronic Water Level Control & Refill
- Oscillating Wash Manifold to Maximize Cleaning
- Easy to Service Front Wash Pump Suction Strainer
- Adjustable Electronic Temp Control, Temp Gage
- Control Transformer External of Panel minimizes Heat
- Programmable 24 Hour 7 Day Clock
- Low Water Shut-off Protects Pumps & Heating System
- Electronic Door Safety Interlock
- Wash Cycle Timer with Auto Reset
- Heavy gage 1/4 " Plate Steel Cabinet Thickness
- 230 V or 460 V - 60 Hz 3-Phase with 120 V Controls
- Chemical Resistant Two Part 3 mil Epoxy Coating
| Work Area Dimensions: |
US |
Metric |
| Platform Length: |
170 inches |
4318 mm |
| Platform Width: |
48 inches |
1219 mm |
| Max. Part Height: |
62 inches |
1575 mm |
| Platform Height above Floor |
58 inches |
1473 mm |
| Platform Capacity: |
10,000 lbs |
4536 kg |
| Heavy Duty Capacity |
30,000 lbs |
13608 kg |
| Overall Dimensions: |
US |
Metric |
| Width: (Std Unit) |
454 inches |
11532 mm |
| Depth: (Std Unit) |
151 inches |
3836 mm |
| Height: |
149 inches |
3785 mm |
| Empty Weight: |
39,500 lbs |
17894 kg |
| Reservoir Capacity: |
1,630 gallons |
6170 liters |
| Spray Blast Manifold: |
| OSCILLATING NON-SYNCHRONOUS Video |
| Angle of Oscillation: (Picture) |
40 Degrees |
| Frequency of Oscillation: |
4 per minute |
| Angle of Orbit: |
315 deg |
| Orbital Speed: |
1.2 rpm |
| Number of Wash Nozzles: (Picture) |
72 |
| Type of Nozzle: |
V-Jet |
| Nozzle Material: |
316 Stainless |
| Heating System: |
US |
Metric |
| Operating Temperature: |
140-190 degrees F |
60-87 degrees C |
| Initial Heat-up Time: |
120 minutes |
120 minutes |
| Electric Heat: (Picture)** |
190 kW |
190 kW |
| Gas / Propane (Picture) |
990,000 BTU/hr |
290 kW |
| Electrical Panel (Picture) |
US |
Metric |
| Motor Starters: |
Across the Line |
Across the Line |
| Short Circuit Protection: |
Std |
Std |
| Overload Protection: |
Std |
Std |
| Electrical Enclosures: |
NEMA 12 |
IP65 |
| Wiring Standard: |
NFPA 79 |
|
| Wiring Conduit: |
Flex-Non-Metallic |
Flex-Non-Metallic |
| Conduit Type: |
Liquidtight Nema 12 |
Liquidtight IP65 |
| Pump System & Performance: |
|
| Motor Type: (Picture) |
Energy-Efficient |
| Motor Rating: |
Continuous Duty |
| Motor Enclosures: |
TEFC |
High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller. Note: All performance data taken at nozzle discharge.
| STANDARD: |
130 hp (US) |
97 kW (Metric) |
| Total System Flow: |
1148 gpm |
4345 l/min |
| Flow per Nozzle: |
15.9 gpm |
60.3 l/min |
| System Pressure: |
152 psi |
10.6 bar |
| Blast Velocity: |
156 ft/sec |
48 m/sec |
| Power Density: |
0.13 hp/ft³ |
4.8 kW/m³ |
Results may vary based on machine configuration.
** Heating element sizes listed for 208, 240 & 480 volt systems. Sizes vary slightly for other voltages.
